Port Forwarding - AzureWave - AW-NR580 (AzureWave Firmware)

AzureWave - AW-NR580 (AzureWave Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

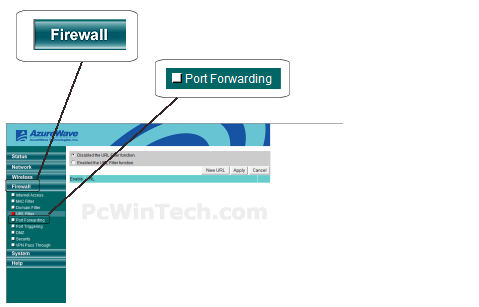

Once logged into your router click on "Firewall"

Wait for the page to load and click on "Port Forwarding"


Click To View Full Picture

Step 5.

First for "Port Forward" check "Enabled"

Next select your "Preset Port"

Give your entry a name under "Name"

For "Public Port" enter in the starting/ending  ports you would like to forward.
Example: 3300-4300

Now select your "Protocol"

Next enter in the computers IP address in "Local IP"

For "Port" enter in the starting port you want to forward.

Click on "Apply"

Repeat steps 4 & 5 for any more ports you want to forward.

All Done!


Click To View Full Picture
