Huawei - Echolife HG510 (Huawei Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Put in your username and password, then click 'Log In'

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.



Step 4.

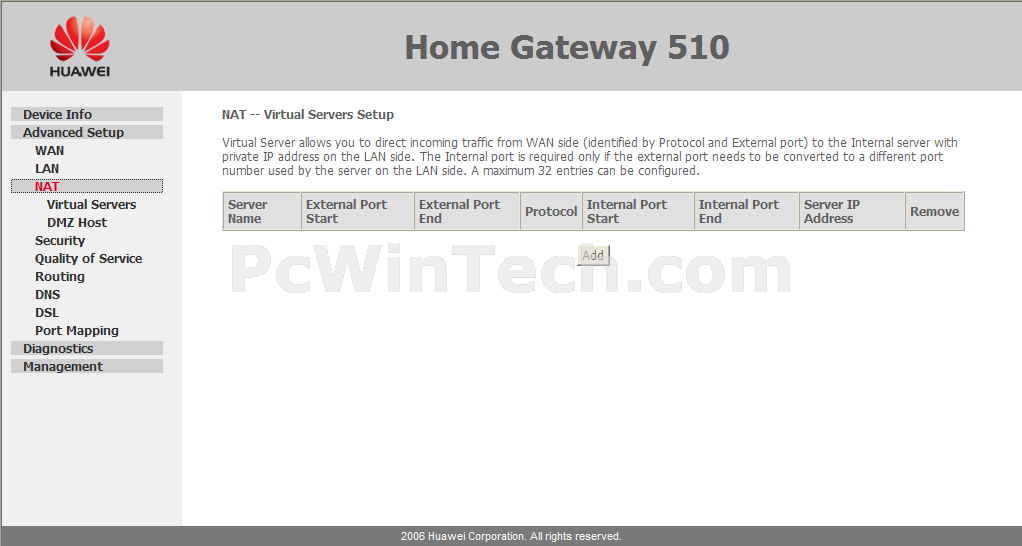

Once logged into your router click on the "Advanced Setup" tab.

Once the page has loaded click on "Virtual Servers"

Click To View Full Picture

Step 5.

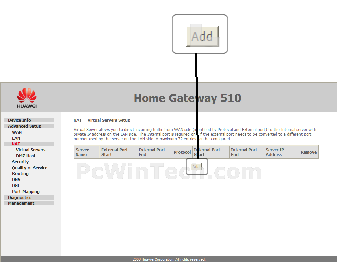

When the page has loaded click "Add"

Click To View Full Picture

Step 6.

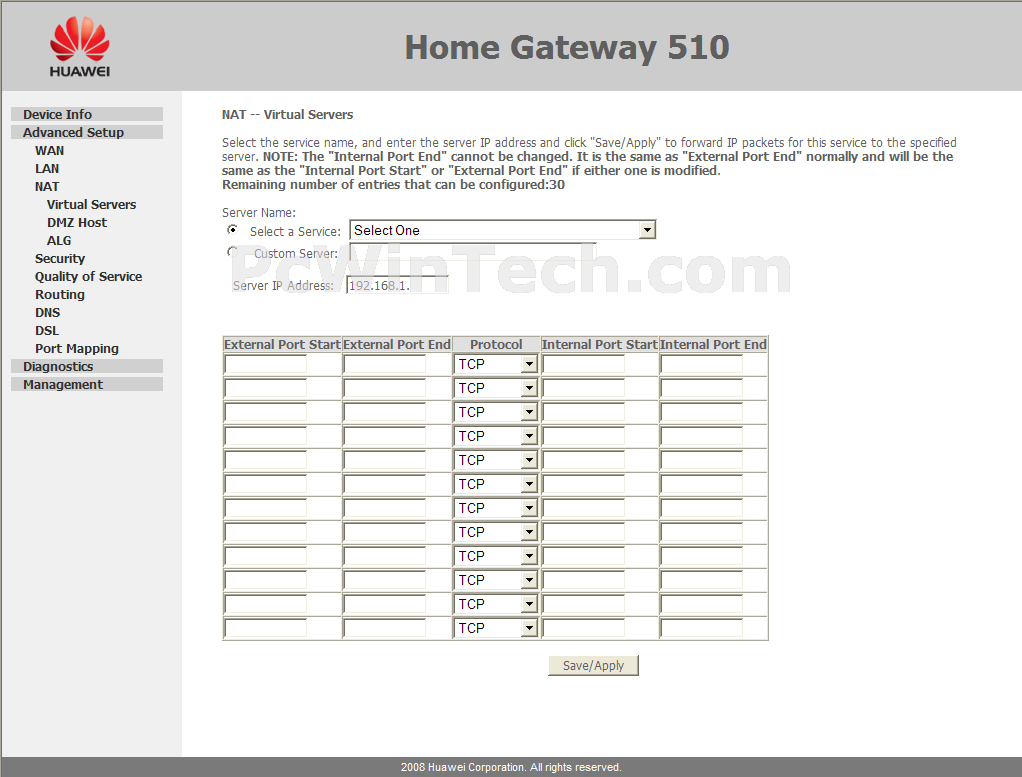

Next you want to "Select a Service" in the dropdown provided.

Enter in the "Server IP Address"

In "External Port Start" enter the starting port to be forwarded.
Example: 2100

In "External Port End" enter the ending port to be forwarded.
Example: 2100

Next choose the "Protocol" you want to use.

In "Internal Port Start" enter the starting port to be forwarded.
Example: 2100

In "Internal Port End" enter the ending port to be forwarded.
Example: 2100

Click "Save/Apply"

Repeat step 6 for any more ports you need to forward.

All Done!

Click To View Full Picture
