ZyXEL - NBG419N (ZyXEL Firmware)
Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding
Step 1.
Some routers & modems work best with port forwarding if you have a static
local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download
my FREE Simple Static IP tool to set it for you.
Step 2.
Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your
router/modem properly.
Need help finding you router IP address? Click here
Step 3.
Enter the routers password here and click the Login button.
If you don't know it you can check our list of default router and modem password list here.
If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.
Step 4.

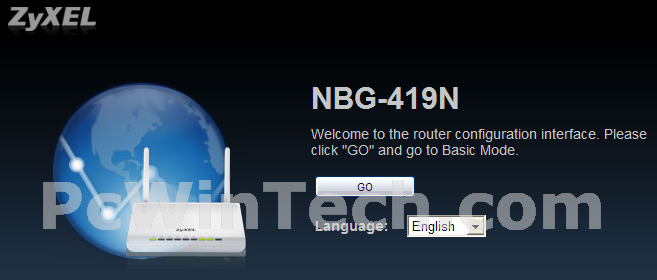

At the Welcome page click the "Go" button.
-00.png)
Once the page loads click the "Expert Mode" button at the top of the page.
-01.png)
Step 5

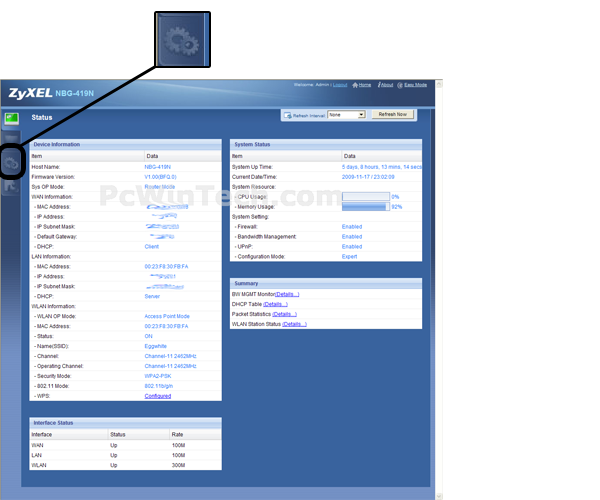

Once the page loads click the "Configuration" tab at the left of the screen.
-03.png)
Step 6
Once the page loads click the "NAT" link listed under "Network".
Now click the "Application" tab at the top of the page.
-06.png)
Step 7

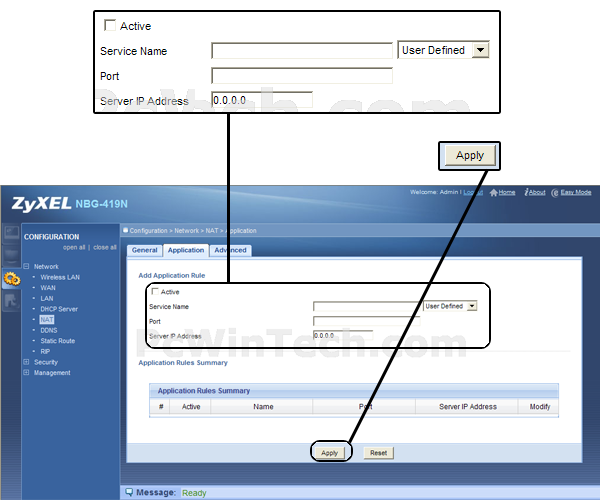

Once the page loads listed under "Add Application Rule" check the "Active" box.
Now for "Service Name" give your rule a name, and select "User Defined" from the list.
For "Port" enter the port you want to forward.
For "Server IP Address" enter the IP of the computer you want to forward to.
Now Click the "Apply" button.
Repeat Step 7 to add more ports.
-07.png)
All done!
