Note: An added benefit of Port Triggering is you do not need to worry about ip addresses.

When using port triggering with applications that don't make outbound connections you can use my free
Port Triggering Initiator to make the connections to trigger the ports for you.

Step 1.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 2.

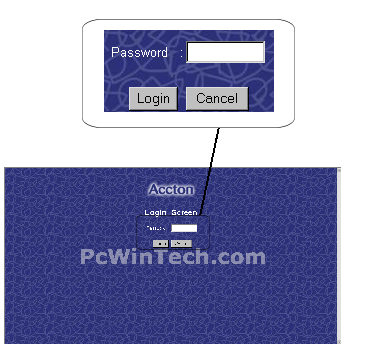

Put in your username and password, then click 'Log In'

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 3.

Next click on "Advanced"

Once the page has loaded click on "Applications"

Click To View Full Picture

Step 4.

Once the page has loaded be sure to check "Enabled"

Next give your entry a name in "Name"

For "Triggered Port" enter in the port to be used as a trigger.
Example: 3000

Next choose your "Trigger Type"

In "Public Port" enter the port to be forwarded.
Example: 4000

Next choose your "Public Type"

Click "Apply"

Repeat this steps for any more ports you want to be used as a trigger.

All Done!

Click To View Full Picture

Note: An added benefit of Port Triggering is you do not need to worry about ip addresses.

When using port triggering with applications that don't make outbound connections you can use my free
Port Triggering Initiator to make the connections to trigger the ports for you.

Step 1.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 2.

Put in your username and password, then click 'Log In'

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 3.

Next click on "Advanced"

Once the page has loaded click on "Application"

Click To View Full Picture

Step 4.

Wait for the page to load then give your entry a name in "Application Name"

For "Triggered Port Range" enter in the ports to be used as a trigger.
Example: 3000-4000

Next choose your "Trigger Protocol"

In "Public Port" enter the ports to be forwarded.
Example: 4000-5000

Next choose your "Public Protocol"

Be sure to check "Enabled"

Repeat this steps for any more ports you want to be used as a trigger.

Click "Apply"

All Done!

Click To View Full Picture

Note: An added benefit of Port Triggering is you do not need to worry about ip addresses.

When using port triggering with applications that don't make outbound connections you can use my free
Port Triggering Initiator to make the connections to trigger the ports for you.

Step 1.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 2.

Put in your username and password, then click 'Log In'

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 3.

Next click on "Applications Gaming"

Once the page has loaded click on "Port Range Triggering"

Click To View Full Picture

Step 4.

Wait for the page to load then give your entry a name in "Application Name"

For "Triggered Range" enter in the ports to be used as a trigger.
Example: 3000-4000

In "Forwarded Range" enter the ports to be forwarded.
Example: 4000-5000

Be sure to check "Enabled"

Repeat this steps for any more ports you want to be used as a trigger.

Click "Apply"

All Done!

Click To View Full Picture

Note: An added benefit of Port Triggering is you do not need to worry about ip addresses.

When using port triggering with applications that don't make outbound connections you can use my free
Port Triggering Initiator to make the connections to trigger the ports for you.

Step 1.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 2.

Put in your username and password, then click 'Log In'

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 3.

Once logged into your router click on "Setup"

Next click on "Advanced Settings"

Once the page has loaded click on "Special Application"

Click To View Full Picture

Step 4.

For "Trigger Port" enter in the starting port to be used as a trigger.
Example: 3000

Next choose your "Trigger Type"

In "Public Port" enter the ending  port to be forwarded.
Example: 4000

Next choose your "Public Type"

Be sure to check "Enabled"

Repeat this steps for any more ports you want to be used as a trigger.

Click "Enter"

All Done!

Click To View Full Picture

Note: An added benefit of Port Triggering is you do not need to worry about ip addresses.

When using port triggering with applications that don't make outbound connections you can use my free
Port Triggering Initiator to make the connections to trigger the ports for you.

Step 1.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 2.

Put in your username and password, then click 'Log In'

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 3.

Once logged into your router click on "Special Apps"

Once the page has loaded click on "Firewall"

Click To View Full Picture

Step 4.

First give your entry a name in the "Application Name"

In "Trigger Range"  enter the ports to be used as a trigger.
Example: 3000-4000

For "Forwarded Range" again enter the ports to be forwarded.
Example: 4000-5000

Be sure to check "Enabled"

Repeat this steps for any more ports you want to be used as a trigger.

Click "Save"

All Done!

Click To View Full Picture
