Westell - B90-327W15-06 (Westell Firmware)


Wireless Setup Guide

Note: When setting up or changing your wireless settings it is a good idea to be plugged into the router with your network cable and not your wireless connection.
          If you are using your wireless connection and make any changes you will lose you wireless connection.

Step 1.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 2.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 3.

Once logged into your router click on "Configuration" then 'Wireless' then 'Basic'.

Click To View Full Picture

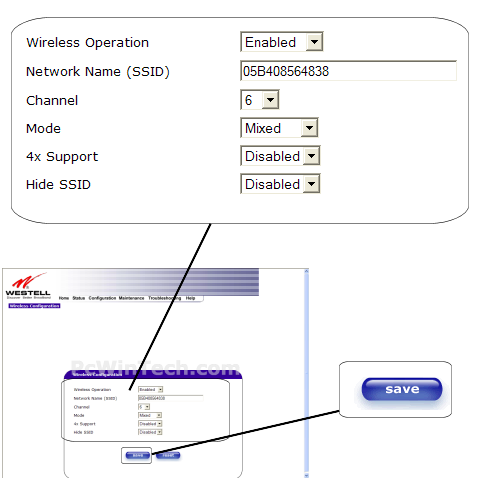

Step 4.

For 'Wireless Operation' choose 'Enable'

For 'Network Name (SSID)' set a name you would like to call your wireless.
What you put here is what will show up when you are searching for a wireless connection.

For 'Channel' you can choose anything you like. If you have a 2.4 GHz cordless phone and it uses the same channel then your wireless connection will get dropped.

For 'Mode' choose 'Mixed'.

For '4x Support' leave this to its default choice.

For 'Hide SSID' choose 'Disabled'

Once all setting are set click 'Save'

Click To View Full Picture

Step 7.

Click on "Configuration" then 'Wireless' then 'Security'.

Click To View Full Picture

Step 8.

For 'Wireless Security' choose 'WPA-PSK'

For 'WPA Shared Key' put in a password of your liking, min 8 chars long.

For 'WPA Group Rekey Interval' leave it at its default setting.

Once all setting are set click 'Save'

Click To View Full Picture

All done!

Westell - B90-327W15-06 (Westell Firmware)


Screenshot Database

Some screenshots have small distortions that were used to blur out personal info such as IP addresses and usernames.
(Click on a picture to view its full size.)

Home	Connection Summery	About
Single Static IP Config	Service Config	Firewall Config
Wireless Config	Wireless Security	Wireless Filter Table
Wireless Advanced Config	DNS Config	DHCP Config
Private LAN Config	Public LAN Config	VLAN COnfig
ATM Loopback	WAN Config	About
Backup/Restore	Firewall Log	Change Password
Remote Access	Update Device	System Self Tests
Diagnostic Logs	Ethernet Port Stats	Transceiver Stats
WAN VC Stats	Wireless Stats	LAN Stats
Wireless Stations	RIP Stats	QoS Status
VOIP Status	Detect WAN Config	QoS Config
Route	Rip Config

Netgear - DG834 v3 (Netgear Firmware)


Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

Once logged into your router click on "Services"
After the page loads click 'Add Custom Service'

Click To View Full Picture

Step 5.

For 'Name' give this entry a name, this must be unique from any other entries.

Under 'Type' choose which protocol to use.

In the 'Starting Port' & 'Finish Port' enter the ports to be forwarded.
Example: 2100 to 2200 or 3000 to 3000

Click 'Apply'

Repeat this step for all ports you need.

Click To View Full Picture

Step 6.

Click on 'Firewall Rules'
After the page loads, under 'Inbound Services' click 'Add'

Click To View Full Picture

Step 7.

For 'Service' choose the service you made from step 5

For 'Action' choose 'ALLOW always'

In the 'Send to LAN server' field put the local IP of the computer the ports will be forwarded to.

For 'WAN Users' choose 'Any'

Click 'Apply'

Repeat this step for all ports.

Click To View Full Picture

All done!

Linksys - WRT110 (Linksys Firmware)


Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

Once logged into your router click on the "Applications & Gaming" tab.

Click To View Full Picture

Step 5.

Click 'Port Range Forwarding'

Under 'Application Name' Give your entry a name, it must not be the same as any others on this page.

In 'Start ~ End Port' enter the ports to be forwarded.
Example: 2100 to 2200 or 3000 to 3000

Next select the protocol for the ports.

In the 'IP Address' field put the local IP of the computer the ports will be forwarded to.

On 'Enable' make sure to check mark it.

Repeat this step for all ports.

Click To View Full Picture

Step 6.

Click 'Save Settings'

All done!

Linksys - WRT110 (Linksys Firmware)


Screenshot Database

Some screenshots have small distortions that were used to blur out personal info such as IP addresses and usernames.
(Click on a picture to view its full size.)

Basic Setup	DDNS	Mac Address Clone
Advanced Routing	Basic Wireless Settings	Wireless Security
Wireless Mac Filter	Advanced Wireless Settings	Firewall
VPN	Access Restrictions	Single Port Forwarding
Port Range Forwarding	Port Range Triggering	DMZ
QoS	Management	Logs
Diagnostics	Factory Default	Firmware Upgrade
Status - Router	Status - Local Network	Status - Wireless
